2024 Wiring light bar into high beams

flymhi · September 18

1 hour ago, rjgvt said:

@flymhi

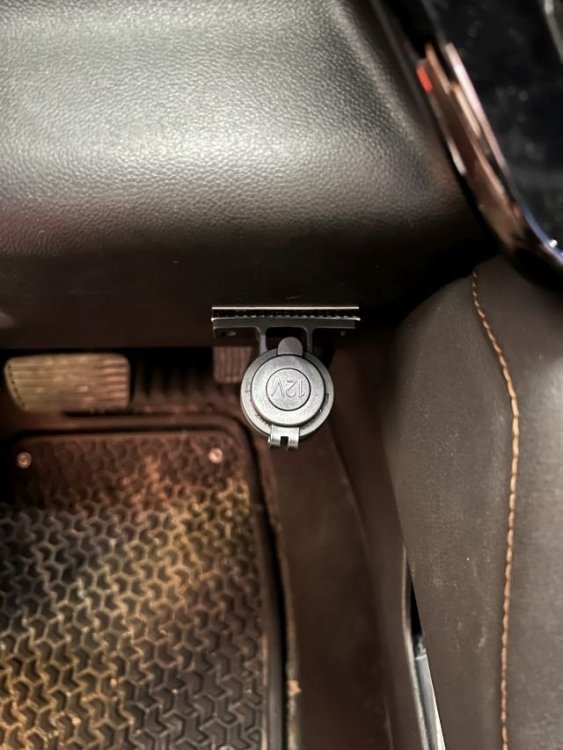

Nice place for the upfitter switches. I put a 12v socket in that location and brought the wires through the dash at the harness near the steering wheel.

Was the rest of the upfitter install the same as the other model trucks for the dash mounted fuse block?

The dash location for the fuse block on my 24 was not pre-drilled. I simply drilled holes in the plastic backing and zip tied the fuse block in place. It's roughly in the same area. The plastic knee bolster panel still fits nicely and hides 98% of the block. Here are more detailed shots.

Edited September 18 by flymhi

newdude · September 18

2 hours ago, CRApex said:

Thanks for the info!

My current setup is safe and works but...I'm going to have to test this. I just need it to trigger the relay, I wonder how they do it with a plow setup?

There's a fuse kit in the plow prep equipment (can be purchased separately too and the plow mfgs sell a kit as well) to activate a 200 amp circuit for a plow, and then as far as lighting goes, looking at a Western for example it appears to be a standard plow headlight adapter like they've always made. Plugs into the headlamp connectors directly inline and then the isolation module switches the lights when the plow is attached.

CRApex · November 16

On 9/17/2024 at 10:51 PM, flymhi said:

I think I have found a spot to use as a trigger for the high beams (K9 BCM X2 pin 32 <wh>). Just finished putting a light bar on my 24 Ulti-D.

You mentioned you thought you found a spot to use as a trigger for the high beams, did it work? Thanks
