Electric brake wiring plug under dash


Recommended Posts

On 4/8/2023 at 6:58 AM, silveradosid said:

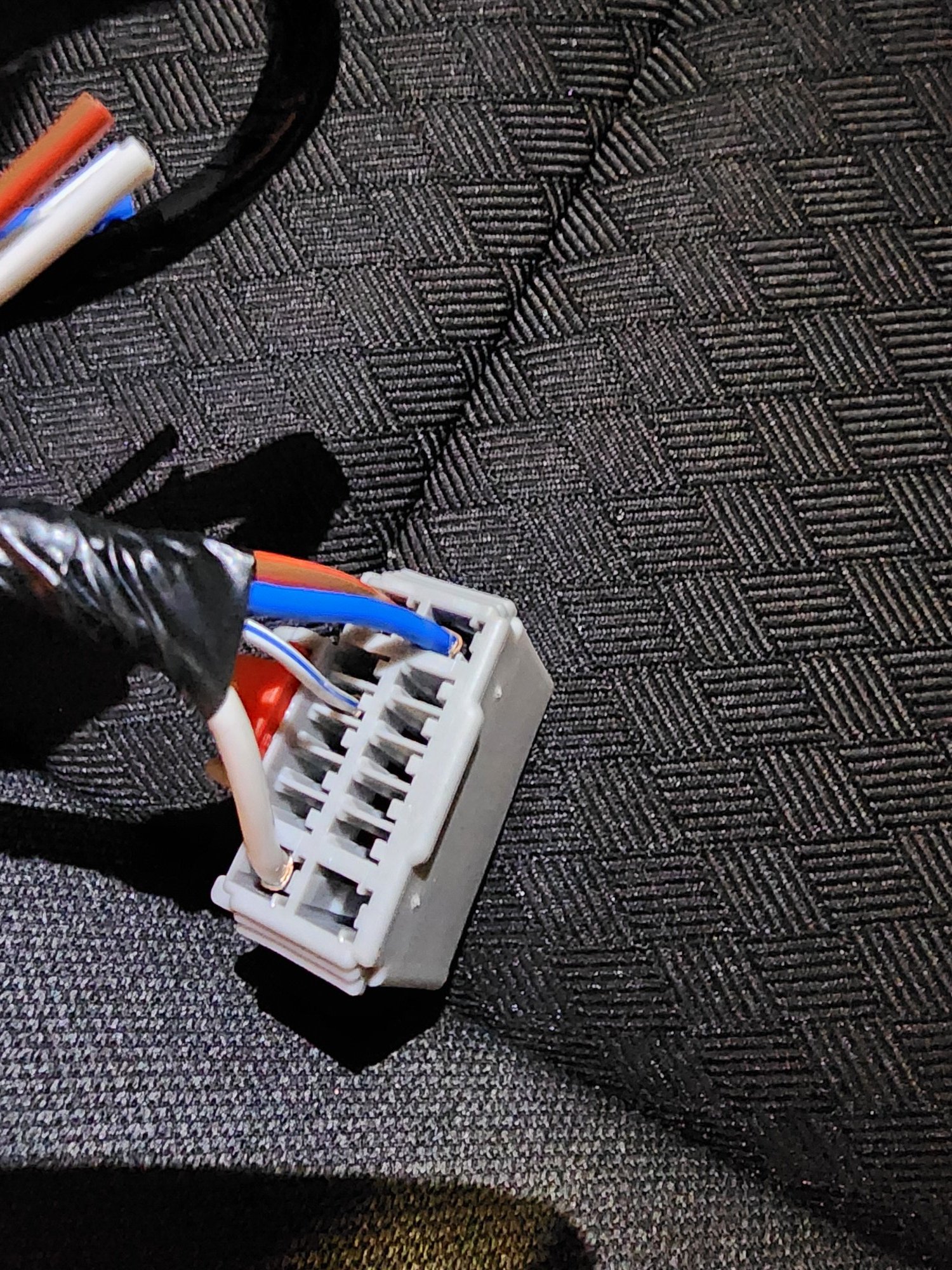

red=power blue goes to trailer plug white=ground and the small wht/blue is the brake signal

brake controller.pdf 90.77 kB · 5 downloads

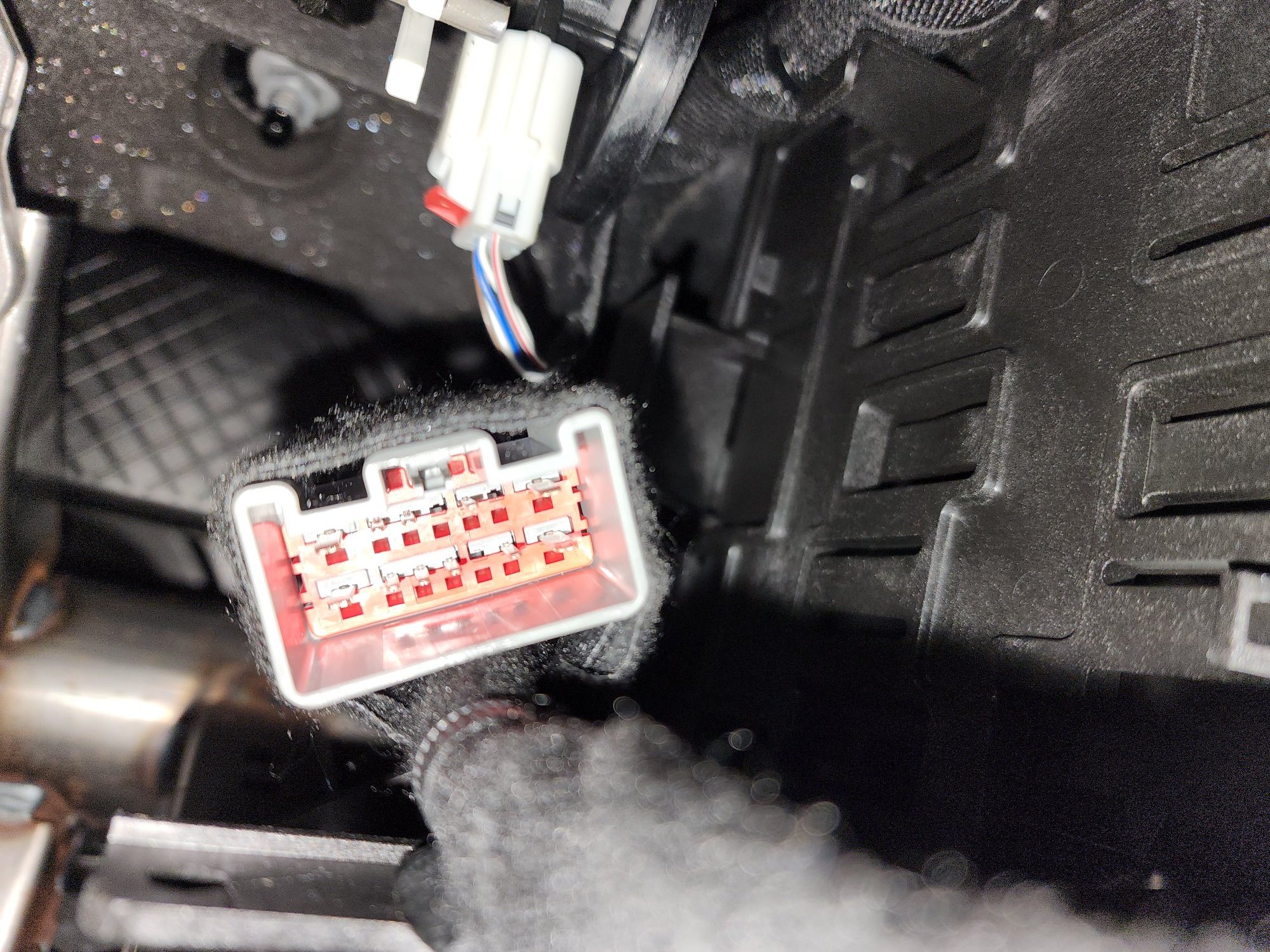

Yeah, I'm looking to see what the other wires on the truck side plug are for. there are 8 other pins with wires in the plug on the truck side.

Link to comment
Share on other sites

They go to nothing.  Connector breakdown shows all the other circuits as unoccupied.  Schematic shows only 5 wires as going to anything.  Pin 1 is ground, pin 2 is for 9C1 cop or 5W4 SSV horn relay only, pin 3 and 4 go nowhere, pin 5 is brake apply signal, pin 6 goes nowhere, pin 7 is battery voltage, pins 8-13 go nowhere and 14 is trailer aux control.

Link to comment
Share on other sites

3 hours ago, newdude said:

They go to nothing.  Connector breakdown shows all the other circuits as unoccupied.  Schematic shows only 5 wires as going to anything.  Pin 1 is ground, pin 2 is for 9C1 cop or 5W4 SSV horn relay only, pin 3 and 4 go nowhere, pin 5 is brake apply signal, pin 6 goes nowhere, pin 7 is battery voltage, pins 8-13 go nowhere and 14 is trailer aux control.

OK, I was hoping there would be a reverse signal in there to wire a back up alarm. Only thing I can see is tapping into the fuse box at F55.

Link to comment
Share on other sites

1 hour ago, Andy Villeneuve said:

OK, I was hoping there would be a reverse signal in there to wire a back up alarm. Only thing I can see is tapping into the fuse box at F55.





What trim level is your truck?
