Help with Line out converter

[17Rally]

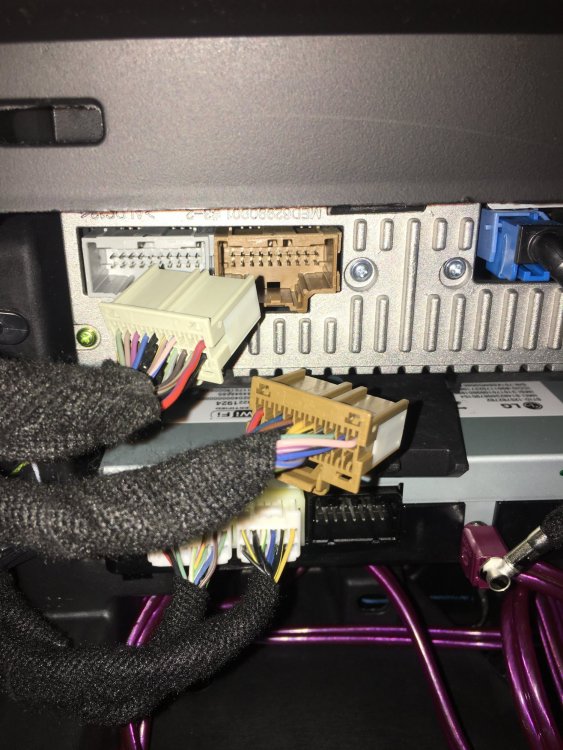

I am installing a 10” subwoofer in my 17 Silverado custom double cab with 7” touchscreen non bose. I have everything ran and wired except for my loc. I’d like to install it behind the factory touch screen.  I can not seem to find the colors for the speaker wires anywhere. Every one I’ve found has a green plug and mine has a grey and brown plug. Can anyone tell me which wires are for the rear speakers? Thank you in advance.

Edited February 18, 2019 by 17Rally
Add information

[1SLOW1500]

At Amp or wires in door sill.

[14 gmcl83]

Do it at the factory amp behind the back seat that how I did mine . I bought the pac line out converter.

[17Rally]

I didn’t think my truck had a factory amp being that it doesn’t have the Bose system. I mounted my aftermarket amp on the back wall behind the rear seat where I believe the factory amp would be.

[Julio C Hernandez]

On 2/17/2019 at 7:25 PM, 17Rally said:

I am installing a 10” subwoofer in my 17 Silverado custom double cab with 7” touchscreen non bose. I have everything ran and wired except for my loc. I’d like to install it behind the factory touch screen.  I can not seem to find the colors for the speaker wires anywhere. Every one I’ve found has a green plug and mine has a grey and brown plug. Can anyone tell me which wires are for the rear speakers? Thank you in advance.

I also need help find the front speaker wire.



[Julio C Hernandez]

I also need help finding the front speaker  wire for my output converter   pac  text me 9566090148 need it asap

[RJF]

I realize this is an old post, but I had the same problem when installing subs in my sons 2016 Silverado. That is how I happened upon this post. It seems that the 2016 Elevation Trim with the 7 inch screen makes this model different than all the ones that show the radio with the green PIN connector. I didn't want others to have to go through the frustration of not knowing the speaker colors coming off the PIN connector, so I am copying the links to the PIN Diagrams for both the Gray and the Brown connectors. I got these diagrams from my local Chevy dealership. The parts department was kind enough to help us out with the problem. The images were too big to post here, the links should take you to the pics. . From my experience and the hours of Google searching I did, this may be the only diagram of these connectors on the WWW. HAHA! I hope it helps any that are looking for this..... If the links get broken or you have any trouble I do not mind you dropping me an email at [email protected]

Best of Luck!



Brown Connector 1 https://imgur.com/95PFHPx

Brown Connector 2 https://imgur.com/oVk7z9D



Gray Connector 1 https://imgur.com/z5Gjd51

Gray Connector 2 https://imgur.com/rUigVzP

Edited April 21, 2020 by RJF
