The "Catch Can" Explained - By Elite Engineering

[Joe@UPRproducts]

Not a big fan of check valves IF they impede the flow of vacuum through them to the intake plenum. If you have a hard time blowing through one before installation, throw it away. You're better without it.



It's all about the flow through the catch can.



Agreed:



That's the reason we came out with the UPR Pro-Series Check Valve Upgrade to offer a SERIOUS high flow check valve. To be able to maintain the flow of the factory PCV system without any restrictions is the most important aspect of proper crankcase evacuation and will directly affect the performance of the catch can system. I see a lot of catch can manufacturers run very restrictive check valves or generic brass fittings with a check valve built in to improve the performance of how much oil they catch through airflow restriction.



( When you slow down airspeed you also kill the PCV system's ability to evacuate the crankcase, it reduces ring seal and overall performance. )



NOT - the correct way to control oil.



UPR is currently working on a few new check valves and one-way valves to be able to eliminate 100% of the crankcase pressure with ease



It's all about the flow through the catch can.





Joe

[BigBlueLB756]

Rightly said, Sir; rightly said.

[thatryan]

Being that they replace the PCV system, are these "legal" in CA, CARB certified or whatever?

Thanks.

[novapwr]

I read about these catch cans starting last July when I purchased my white 16 CC Z71 1500. Bought one at Christmas time and installed it. Basic can with the nice lines. Mounted it up on the backside of the radiator support like some others did. I don't drive the truck all winter so didn't figure I needed it down next to the manifold. This is the first time I have checked it. About 1100 miles give or take. Looks to me to be doing a pretty good job. I'm at 9100 miles. At 10K I'm jumping to a higher viscosity oil. Anyways just thought I would share my results. Not sure why my picture is sideways. It was correct when I chose it. Too tired to mess with it.









[BigBlueLB756]

Being that they replace the PCV system, are these "legal" in CA, CARB certified or whatever?

Thanks.

They don't "replace" the PCV system, but are inserted in the PCV line to collect out any liquids in the PCV vapor.

As long as the system was connected and operational, looks like there would be no problem, but again, I don't have a California mind-set.



Thanks be to God.

[Takeda]

Catch cans are a GIMMICK! The OEM PCV system does not put condensed combustion by-product vapors (liquid) back into the intake, as collected by a catch can! The combustion by-product vapors are in extremely low concentrations in the intake, when compared to the air volume.

[Elite Engineering]

Catch cans are a GIMMICK! The OEM PCV system does not put condensed combustion by-product vapors (liquid) back into the intake, as collected by a catch can! The combustion by-product vapors are in extremely low concentrations in the intake, when compared to the air volume.





I'm sorry, but your information is just wrong. All you need to do is drain or open the bottom of one of our Catch Cans after about 2000 miles, and the obvious proof is in the contents collected.



What is caught in a catch can (CC) can vary depending on how well it's designed and how effective it is. The more effective CCs will trap the most allowing almost no damaging compounds or oil to get past.



To understand what a Catch Can traps (an effective one, 95% don't trap more than 15-30% so not much help) you must first look at the PCV system.



The PCV system performs many more functions than just "pollution control". Of these the proper flushing and evacuation of the damaging combustion byproducts that enter as blow-by in all engines. This consists mainly of the following:



Water vapor (released during the intense heat and pressure during the combustion process)



Un-burnt fuel (especially in cold weather when cold start enrichment takes place. Gasoline does not burn completely.



Sulfuric Acid (forms when the water vapor mixes with other hydrocarbon based chemicals and is very corrosive to internal parts)



Abrasive soot and carbon particles. These are generally too small for the oil filter to trap, as they are far smaller than the 15 micron size a filter is able to trap. And if these are not removed by evacuation and flushing, as soon as they enter, these quickly fall and settle into the engine oil causing accelerated wear.



So, what you are catching is far more than oil, and to return it (as amazingly some Catch Cans do!) to the crankcase, is pouring in damaging materials direct in as a concentrate.



Edited August 3, 2017 by Elite Engineering

[Cowpie]

Catch cans are a GIMMICK! The OEM PCV system does not put condensed combustion by-product vapors (liquid) back into the intake, as collected by a catch can! The combustion by-product vapors are in extremely low concentrations in the intake, when compared to the air volume.

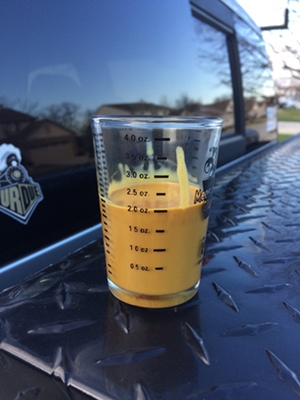

Tell that to my 2006 Cadillac CTS with its 3.6L. That has the sorriest PCV design. The catch can on it catches about 1/4 qt of oil every 500 miles. When the wife takes the car up to see her dad, about a 460 mile round trip, the catch can in almost full when she gets home. The engine only has about 65,000 miles on it. That much oil has gone thru the PCV line almost since it was new. Other than the oil going thru the PCV line, the engine doesn't use much oil at all.



My 2013 1500 5.3L was bad enough. Usually had to dump the can mid point between oil changes and then at the oil change. At least my 2015 2500 6.0, I only dump the catch can once a year when I do the oil change. It rarely gets more than 5000 miles a year on it.



May be a gimmick to some, but after seeing the results on 3 vehicles, I am convinced.

Edited August 4, 2017 by Cowpie

[Takeda]







I'm sorry, but your information is just wrong. All you need to do is drain or open the bottom of one of our Catch Cans after about 2000 miles, and the obvious proof is in the contents collected.



What is caught in a catch can (CC) can vary depending on how well it's designed and how effective it is. The more effective CCs will trap the most allowing almost no damaging compounds or oil to get past.



To understand what a Catch Can traps (an effective one, 95% don't trap more than 15-30% so not much help) you must first look at the PCV system.



The PCV system performs many more functions than just "pollution control". Of these the proper flushing and evacuation of the damaging combustion byproducts that enter as blow-by in all engines. This consists mainly of the following:



Water vapor (released during the intense heat and pressure during the combustion process)



Un-burnt fuel (especially in cold weather when cold start enrichment takes place. Gasoline does not burn completely.



Sulfuric Acid (forms when the water vapor mixes with other hydrocarbon based chemicals and is very corrosive to internal parts)



Abrasive soot and carbon particles. These are generally too small for the oil filter to trap, as they are far smaller than the 15 micron size a filter is able to trap. And if these are not removed by evacuation and flushing, as soon as they enter, these quickly fall and settle into the engine oil causing accelerated wear.



So, what you are catching is far more than oil, and to return it (as amazingly some Catch Cans do!) to the crankcase, is pouring in damaging materials direct in as a concentrate.









I wouldn't expect anything less from a catch can salesman!



Check this out:





Moderator Note: The reposted info from another vehicle forum website that was originally posted here was incomplete and has been removed. FYI....It is also 6 years old. The link I have provided is to the original article which contains some additional info





"Direct Injection Fouls Some Early Adopters"

Edited August 4, 2017 by txab

[Elite Engineering]





Tell that to my 2006 Cadillac CTS with its 3.6L. That has the sorriest PCV design. The catch can on it catches about 1/4 qt of oil every 500 miles. When the wife takes the car up to see her dad, about a 460 mile round trip, the catch can in almost full when she gets home. The engine only has about 65,000 miles on it. That much oil has gone thru the PCV line almost since it was new. Other than the oil going thru the PCV line, the engine doesn't use much oil at all.



My 2013 1500 5.3L was bad enough. Usually had to dump the can mid point between oil changes and then at the oil change. At least my 2015 2500 6.0, I only dump the catch can once a year when I do the oil change. It rarely gets more than 5000 miles a year on it.



May be a gimmick to some, but after seeing the results on 3 vehicles, I am convinced.





Exactly! The proof is in the bottom of the Catch Can. Simple: the contents either get caught in a well engineered Catch Can and discarded, or blown back into your intake.

[Takeda]





Tell that to my 2006 Cadillac CTS with its 3.6L. That has the sorriest PCV design. The catch can on it catches about 1/4 qt of oil every 500 miles. When the wife takes the car up to see her dad, about a 460 mile round trip, the catch can in almost full when she gets home. The engine only has about 65,000 miles on it. That much oil has gone thru the PCV line almost since it was new. Other than the oil going thru the PCV line, the engine doesn't use much oil at all.



My 2013 1500 5.3L was bad enough. Usually had to dump the can mid point between oil changes and then at the oil change. At least my 2015 2500 6.0, I only dump the catch can once a year when I do the oil change. It rarely gets more than 5000 miles a year on it.



May be a gimmick to some, but after seeing the results on 3 vehicles, I am convinced.



If you are using a quart of oil every 2K miles in that 3.6L, that engine is not healthy!



Another comment on catch cans: Millions of vehicles with DI engines (forced induction, and NA) have run millions, and millions of miles with no problems without a catch can. There has been no long term testing with catch cans. Matter of fact, since they condense water vapor (the major by-product of combustion), this would reduce the cleansing effect that water vapor has internally on an engine! Just something to consider!

[Takeda]





Exactly! The proof is in the bottom of the Catch Can. Simple: the contents either get caught in a well engineered Catch Can and discarded, or blown back into your intake.





Once again, with an OEM PCV system, condensed (liquid) combustion by-products DO NOT enter the intake, only vapors, in very low concentrations!!!!!

[Elite Engineering]





Once again, with an OEM PCV system, condensed (liquid) combustion by-products DO NOT enter the intake, only vapors, in very low concentrations!!!!!





I'm sorry to disagree, but your information is just not correct. All you need to do is remove the intake and look inside, do this before the installation and after the installation of a Catch Can and you'll see the obvious results.



This also is why it is so critical to the engines life to retain all of the functions the PCV system performs that keeps your engine contaminate free and living a long life. If you break this and install a "vented tank or Catch Can then you are breaking a good part of these functions, and if you delete the PCV system entirely, and only vent vapors/pressure, then almost all of these damaging compounds are remaining in the crankcase to accumulate and over 20-30k miles an engine can experience as much wear as several hundred thousand miles with a properly functioning PCV system left intact. So that is why you also do not want to add in the same amount of new oil as your Catch Can caught, as it may only be a small amount of just oil.



This is why Elite Engineering designed and released the E2 Catch Can to allow for constant evacuation by adding an additional secondary evacuation suction source so that the PCV system is not just evacuating during idle, cruise, and deceleration when Intake Manifold vacuum is present, but allows for the addition of the suction resent during acceleration and WOT just upstream of the TB on NA engines, and the turbo or centri inlet on FI builds. Then our latest, designed due to the extra needs of today's GI engines as the most effective release to date, the E2-X series of systems.



The E2 and E2-X series, if configured properly, will aid in better ring seal. This reduces the amount of blow-by as well as preventing "ring flutter" at higher RPM's by maintain a more stable and controlled piston ring seal.



Our Catch Cans perform to give maximum engine life as well as preventing the ingestion of oil and the other compounds that cause issue in all engines.



We're not a bunch of salesmen, but a group of degreed mechanical engineers with over 40 years in the racing and automotive industry. To borrow the line from State Farm, we know a thing or two because we've seen a thing or two



[Silver16]

Snake oil. Back in the day when engines were dirty air pumps and saw hard use maybe. The PCV system back then was archaic. With now a days technology I haven't been sold on this gimmick. Breaking into a system to install another obstruction in my mind can or does create ancillary problems. No amount of salesman write ups will convince me. This would have been a great Mythbusters episode.

Edited August 4, 2017 by Surfarado

[txab]

This post provides the complete article that was originally referenced in an earlier post.







With proper attributions: https://www.edmunds.com/autoobserver-archive/2011/06/direct-injection-fouls-some-early-adopters.html





Direct Injection Fouls Some Early Adopters

By AutoObserver Staff



June 15, 2011

In their efforts to wring more power and efficiency from the internal combustion engine, automakers are increasingly turning to gasoline direct-injection technology – also known as GDI or DI. Originally developed to produce more economical and quieter combustion for diesel engines, DI is inherently more efficient and helps generate more power than port injection. And advances in engineering and engine management, fueled by fierce industry competition and consumer demand, are making DI technology more cost-effective than ever for manufacturers: gasoline DI engines are appearing in entry-level models from Ford Motor Co., General Motors Co.’s Chevrolet and Hyundai Motors. Currently, more than 60 2011 and 2012 models in the U.S. offer DI engines as standard equipment.

But there has been a dark side to the technology: carbon build-up around intake valves that, over time, can degrade power and efficiency, eroding the bonus DI is supposed to provide. While there’s evidence that the most recent designs and technical enhancements have greatly reduced the issue, carbon buildup has been a distinct and well-documented issue in some DI engines from a variety of manufacturers over the last few years.

Known Problems
A U.S. patent application filed in 2002 by Volkswagen AG explains the DI-engine carbon-deposit dilemma this way: “Gasoline engines with direct injection of the fuel into the combustion chamber…suffer especially from the problem of the formation of carbon deposits…especially in the neck region of the intake valves.”

The document describes these deposits as a sticky coating of oil and fuel constituents that, once formed, serves as a base for further deposits, creating “a circular process, by which the coating thickness of the carbon deposits continuously increases.” Excessive carbon deposits “have extremely negative effects,” the patent application concludes, citing significant performance losses, sporadic ignition failures and, potentially, holes burned in the structure of the catalytic converter (should bits of carbon break from the valves and pass though the combustion chamber).

Ameer Haider, GM’s assistant chief engineer for V6 engines, certainly knows the problem, telling AutoObserver, “DI engines are prone to forming oily deposits on the intake valves, unlike in port fuel-injected engines, where a constant spray of fuel into the port allows any deposits to wash away. With DI engines, the fuel gets injected directly into the combustion chamber, so there isn't a chance for the deposits to wash away. Typically, deposits form when soot – which is an end-product of combustion – adheres to the valve stem.”

The main purpose of VW’s patent application was to propose a fix for DI engine carbon deposits: specifically, applying “a catalytic surface” to the engine valves that “counteracts the formation of carbon deposits.” But nearly 10 years later, there’s ample evidence that this and other potential solutions have failed.

Constantine Boyadjiev works as a risk management officer at a financial firm in New York and has been an auto enthusiast for most of his life. In 2008, he decided it was time to part with his beloved 2001 BMW M5, mainly due to escalating maintenance costs – but also because he discovered that a number of fellow owners were dealing with expensive-to-fix carbon build-up in their vehicles’ engine cylinder heads.

When Boyadjiev replaced his BMW with a barely-used 2008 Audi RS 4, he thought he had put all worry about carbon build-up behind him. But, as he said, “Little did I know that there was a much uglier carbon-build-up problem awaiting me.” Boyadjiev became involved with the online RS 4 owner community when he was searching for his car, in particular a group of veteran Audiworld.com members who later migrated to QuattroWorld.com. He kept active with the group as he took delivery of the car and enjoyed the first few months of ownership. Not long after, though, he was dismayed to see that “the message boards caught fire with plenty of formally documented cases” of carbon build-up with fellow RS 4 owners’ engines.

Boyadjiev admits to some initial “wishful thinking” that perhaps the problem might only affect earlier production models or that the forum members were merely trumpeting an isolated issue. But then, despite his own “religious” maintenance practices, including using only 93-octane premium fuel and avoiding short, in-town trips that failed to bring the engine up to proper operating temperatures, it soon was apparent his Audi’s 4.2-liter direct-injected V8 also was plagued by carbon buildup.

“The loss of performance became very noticeable over time,” he says. He decided to document it, taking the car to a local automotive performance specialist in nearby Stamford, Connecticut, to have its power measured by a dynamometer.

At its first measurement, Boyadjiev’s RS 4 had 15,000 miles and produced 324 all-wheel horsepower, measured at the wheels (AWHP). Roughly one year and 5,000 miles later, the same test showed 317 AWHP. After another year and 5,000 miles, power was down to 305 AWHP. Power from the 4.2-liter V8 had degraded by almost 5 percent in just 10,000 miles.

Considering the RS 4’s performance pedigree – and correspondingly large price tag (in excess of $70,000 MSRP) – this was an alarming trend, something Boyadjiev thought Audi would want to address head-on, especially since parent company VW had earlier documented these very issues in its DI engines. But Boyadjiev and his fellow RS 4 owners found Audi quick to dismiss the issue as a byproduct of poor-quality U.S. gasoline and American-style driving habits (i.e. the absence of high-speed runs on the Autobahn). Audi offered no assistance.

So Boyadjiev took an action to which many other RS 4 owners already had resigned themselves: he had an independent mechanic disassemble the engine and clean it – a $1,200 expense at the time. He returned to the dynamometer to see if the cleaning had made any difference. It had. Engine output soared by 41 AWHP and the car felt new again. For the moment, at least.

Boyadjiev said he is prepared to pay for such a maintenance cleaning every 10,000 miles. And while he is certainly not happy about that, he’s willing to endure the hassle and cost. “The car is so rewarding and a joy to drive,” he says. He is far less complimentary about Audi’s response to the issue. Despite the evidence Boyadjiev and many of his fellow RS 4 forum members have presented, “the company continues to deny this is a very serious issue,” he said. “I have very little respect for a company that refuses to stand behind its name, especially when professing a motto of ‘Progress through Technology,’” he added. And experiences like Boyadjiev’s are not uncommon.

A Google search for “direct injection carbon build up” reveals a flood of owner complaints about the issue across vehicle brands and models, including particularly active threads for the VW GTI, the Lexus IS 250, and a variety of Audi models in addition to the RS 4.

All Engines Not Designed Equally
Many automakers’ gasoline DI engines do not appear to exhibit any carbon build-up issues at all, however. Digging into online threads about Cadillac’s 3.6-liter DI V6 in its popular CTS lineup does reveal some owner concerns about carbon build-up, but it’s difficult to find even a single report that any build-up has actually occurred – a record that is notable considering that Cadillac has sold more than 200,000 CTS models with DI V6s (Audi sold fewer than 2,000 RS 4s in the US during its two-year sales run).

Haider, GM’s V6 assistant chief engineer, explained how GM has designed its DI engines to combat carbon buildup: “We maintain great engine function and performance in our all our DI engines through an optimization strategy with our valve events,” he said. “Our intake-cam timing, injector targeting and timing of the injection events are optimized to avoid direct fuel contact on the intake valves. This strategy keeps smoke and soot formation to an absolute minimum, which in turn prevents excessive deposit formation.”

At the Detroit Auto Show in January, Ford was confident enough about its popular 3.5 liter EcoBoost direct-injection V6 to have technicians tear down an example engine that had accumulated the equivalent of 160,000 miles through an intentionally abusive regimen of log dragging, high-speed towing and desert racing. When they opened it up before a live audience, they found some light carbon deposits on the valves and pistons, but not enough to affect performance. In fact, the engine showed a loss of just one horsepower afterwards – roughly what Boyadjiev’s RS 4 engine lost every 500 miles.

Stephen Russ, technical leader for combustion for Ford’s 2-liter Duratec DI engine, said that similar to GM, engineers have determined the proper injection-timing calibration to help eliminate the carbon deposits. But Russ also said the technology of injection components – particularly the high-pressure solenoid injectors – has quickly matured, meaning excess valve deposits in most DI engines should become a thing of the past as these improved components are incorporated into production.

Tony Chick, principal engineer at European Performance Labs in Stratford, Connecticut, has made a career of repairing and rebuilding high-performance engines from Audi, Porsche AG and BMW, among others and his operation has garnered a reputation among car enthusiasts as a go-to place for cleaning DI engines that have become choked with carbon. Chick thinks the problem for most affected engines can be traced to the breathing system – specifically, the design of its crankcase ventilation and exhaust-gas recirculation components.

All modern gasoline engines return some crankcase and exhaust gases back through the intake manifold in order to help control emissions, but, according to Chick, some exhaust-gas recirculation designs are “dirtier" than others. Some, he said, are less-effective at preventing the passage of tiny bits of oil, carbon and other particulates that eventually get baked onto the intake ports and valves.

Chick reached his conclusion after inspecting dozens of different DI engines at his shop and finding some, like the V8 in Boyadjiev’s Audi RS 4, regularly choked with carbon while others, like the DI version of Porsche’s horizontally opposed 6-cylinder, remained much cleaner.

If he’s right, the rapid adoption of DI has actually illuminated an issue, not caused one. A “dirty” intake or exhaust-recirculation design can easily go undetected in a conventional port-injected engine due to the cleaning effect of gasoline passing over the intake valves. When the same engine designs are adapted to direct-injection fueling, however, that cleaning effect is suddenly lost – and the carbon layers can build.

There is no simple fix for engines that are prone to carbon build-up, Chick says. What’s needed is a complete redesign of the crankcase ventilation and exhaust-gas recirculation systems to prevent particulates from getting through. Fortunately, the manufacturers whose engines are frequently cited in carbon build-up reports – mainly VW, Audi and Lexus – appear to have taken this step with many of their latest models. For instance, Audi’s new 3-liter supercharged V6, used in the S4 and A6 models, has so far been free from carbon-related complaints – a far cry from the 3.2 liter V6, which has numerous threads dedicated to the condition.

If Ford and GM engineers and Chick are correct, the carbon-buildup problem now may be relegated to previous engine designs that were not well-adapted for DI. But that’s probably little consolation to some early adopters like Boyadjiev, who must add regular carbon cleaning services to their cars’ ongoing maintenance requirements – a cost that, for now at least, they are expected to absorb entirely on their own as they grapple with the “dirty” secret of this emerging technology.

Mark Holthoff manages customer support for Edmunds.com.
Matt Landish oversees digital media development and publishing for Edmunds.com.

AutoObserver Staff: Mark Holthoff and Matt Landish

Edited August 4, 2017 by txab
