Harvey The Hurricane Truck Build

[Trigger man]

 Some video from paint



[Trigger man]

I decided to paint all of the textured trim and black it out. The system used is PPG ONE CHOICE.

[chrispassas21]

I decided to paint all of the textured trim and black it out. The system used is PPG ONE CHOICE.

This is pretty sweet


2015 Silverado LT Midnight Edition
4.5” CST suspension lift
Sent from my iPhone using Tapatalk

[Trigger man]

2 minutes ago, chrispassas21 said:

This is pretty sweet


2015 Silverado LT Midnight Edition
4.5” CST suspension lift
Sent from my iPhone using Tapatalk

Thanks Chris, I blacked out my tail lights also with the same process. Hope to have pictures up soon

[chrispassas21]

Thanks Chris, I blacked out my tail lights also with the same process. Hope to have pictures up soon

Np. So did you get it to run yet?


2015 Silverado LT Midnight Edition
4.5” CST suspension lift
Sent from my iPhone using Tapatalk

[Trigger man]

Just now, chrispassas21 said:

Np. So did you get it to run yet?


2015 Silverado LT Midnight Edition
4.5” CST suspension lift
Sent from my iPhone using Tapatalk

Yes I drove it home recently from work so I could finish up the smaller stuff. I still need to take it up to Fathouse for a proper tune on 93. I have a couple things I want to change before hand. I will do a dyno day video with plenty of pics. CAN'T WAIT for that day.

[Trigger man]

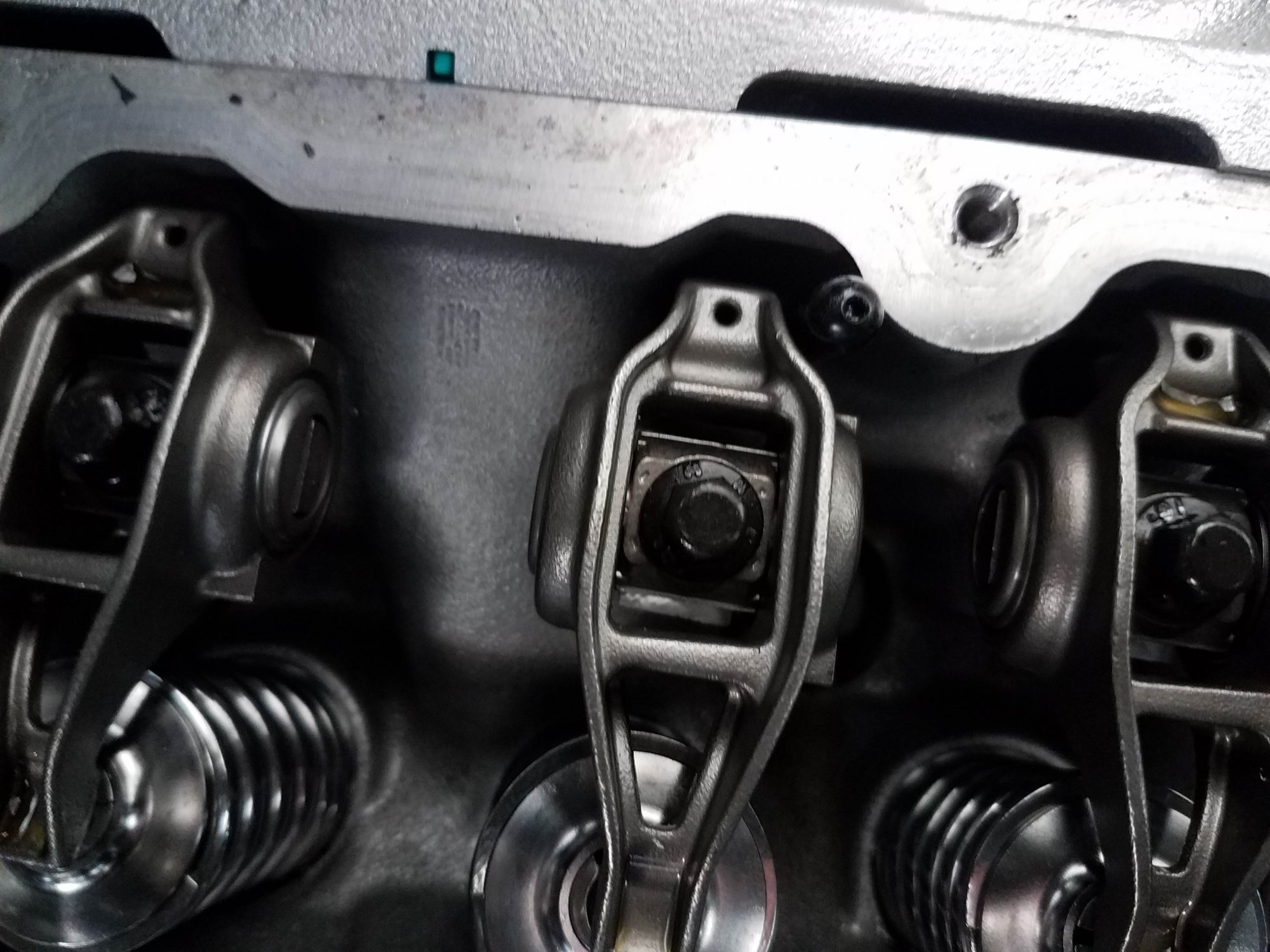

So I wanted to rant for a second. I payed a local performance shop to install a Tooley cam, lifters , pushrods,springs, dod delete ect. This motor was taken out of a 2018 silverado with 3 miles. After getting the motor in the truck I felt like there was a miss. But there was also a lot of questions about the electronics and what might be effects from the flood damage,so I kept delaying a search till more progress was made. My tech buddies kept saying its probably tune related. I found a broken spark plug and that did help. But it was not untill I went to replace the plugs during the blower install that I noticed #4 plug was clean. Telling me it wasn't firing. At that point I tore the valve cover off and found that the guy that installed my stuff obviously used an impact and ran through the rockers quickly and carelessly. In the process he failed to see the pushrod shown in the pics, was not seated on the rocker. It was pinched between the head and remained there unscathed until I found it. I pulled it and checked it for straightness and it was fine. I was mad at the careless way it was done ,but I didn;t bother calling him cause it wouldn't change anything. But I will not by products or do business with him anymore. OK that's my rant

[1SLOW1500]

I would go over every rocker and check the torque specs.

Did I miss something? How much boost you going to run?

also don't waste your time with E85 unless your

1- low boost and still want it

2- upgrading fuel system to 6.2/lt1 or better

3-cam increase fuel %32 or better with spring cap (I see the BTR stage 1, but don't know the specs)

It is cheap to upgrade but you have less power per mass. Meth would be better cost and power but there are mixed opinions on meth over the the supercharger rotors.

[Trigger man]

I would go over every rocker and check the torque specs.
Did I miss something? How much boost you going to run?
also don't waste your time with E85 unless your
1- low boost and still want it
2- upgrading fuel system to 6.2/lt1 or better
3-cam increase fuel %32 or better with spring cap (I see the BTR stage 1, but don't know the specs)
It is cheap to upgrade but you have less power per mass. Meth would be better cost and power but there are mixed opinions on meth over the the supercharger rotors.

Yeah I did go back over them. They were definitely hit with an impact. Sure does ruin my confidence in the rest of it tho. I put the 30% increase lobe on the cam. Also it is already a flex fuel truck so no big expense. I will be sticking with 93 unless I get bored and If I stay away from the local track I should be ok. I'm gonna take plenty of photos and videos when I get it on the dyno so stay tuned I may be paying for a clean up charge .lol

Sent from my SM-G930V using Tapatalk

[Nasty]

1 hour ago, Trigger man said:

Yeah I did go back over them. They were definitely hit with an impact. Sure does ruin my confidence in the rest of it tho. I put the 30% increase lobe on the cam. Also it is already a flex fuel truck so no big expense. I will be sticking with 93 unless I get bored and If I stay away from the local track I should be ok. I'm gonna take plenty of photos and videos when I get it on the dyno so stay tuned I may be paying for a clean up charge .lol

Sent from my SM-G930V using Tapatalk


Youre going to want a splitter like im having made for my truck

[Trigger man]

Youre going to want a splitter like im having made for my truck [emoji4]

Tell me about the splitter

Sent from my SM-G930V using Tapatalk

[Nasty]

3 minutes ago, Trigger man said:

Tell me about the splitter

Sent from my SM-G930V using Tapatalk




[Nasty]

4 minutes ago, Trigger man said:

Tell me about the splitter

Sent from my SM-G930V using Tapatalk




[Trigger man]

8 hours ago, Nasty said:



That looks totally bad ass! Who is making that , Nasty? That styling would fit in perfect with the look i'm trying to achieve .

[Nasty]

1 hour ago, Trigger man said:

That looks totally bad ass! Who is making that , Nasty? That styling would fit in perfect with the look i'm trying to achieve .

Kdesign wings. I dont like the other ones he makes. So i got in touch with him and hes making me one to my specs
