2019 Parts Diagrams Thread

Zane

By Zane
July 31, 2018 in 2019-2025 Silverado & Sierra

Start new topic

Recommended Posts

Zane

Senior Enthusiast

Zane

Posted July 31, 2018

- Share

Posted July 31, 2018

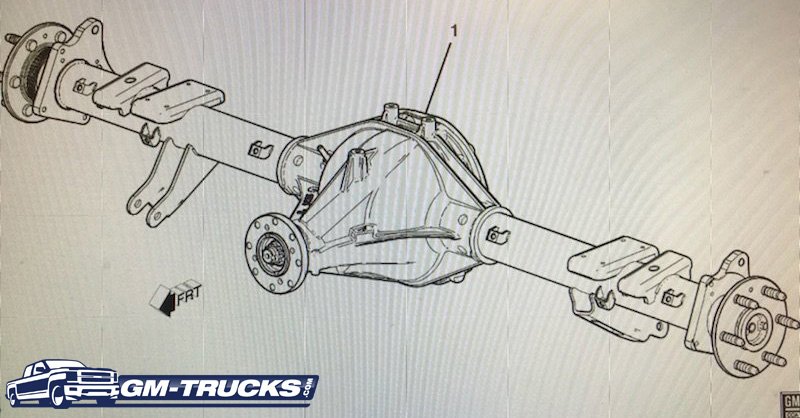

I guess it's time to start a thread of leaked and/or official parts diagrams. Here's the first set.

Link to comment

Share on other sites

Sierra Dan

Senior Enthusiast

Sierra Dan

Posted August 1, 2018

- Share

Posted August 1, 2018

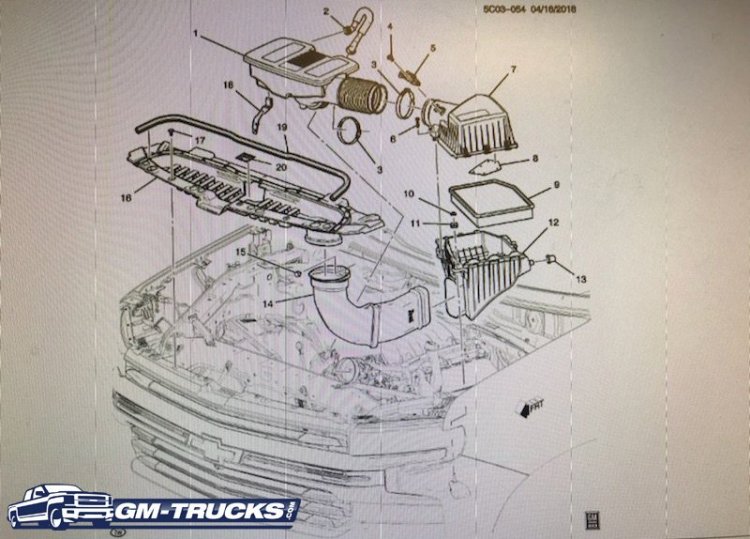

Looks like the intake is completely different compared to previous generations.

The " cold air " box has always been on the passenger side, now it looks to be on the drivers side.

Assuming this is the 5.3 or 6.2 setup.

Link to comment

Share on other sites
