Rear bumper wire harness pinouts

1500fp

By 1500fp
in 2014 - 2019 Silverado & Sierra

 Share

Recommended Posts

1500fp Enthusiast

1500fp

Posted
Posted

2014 Silverado LT V6



Does anyone know where i can acquire the pinouts for the wire harness on the rear bumper?



I bought a new bumper, plugged in the harness and my plate lights are not getting power. All other lights work fine, as do the trailer plugs (except for the plate light). Already checked fuses so my next guess is the bumper i got has pinouts for a different model/year.







Link to comment
Share on other sites
1500fp Enthusiast

1500fp

Posted
  • Author
Posted

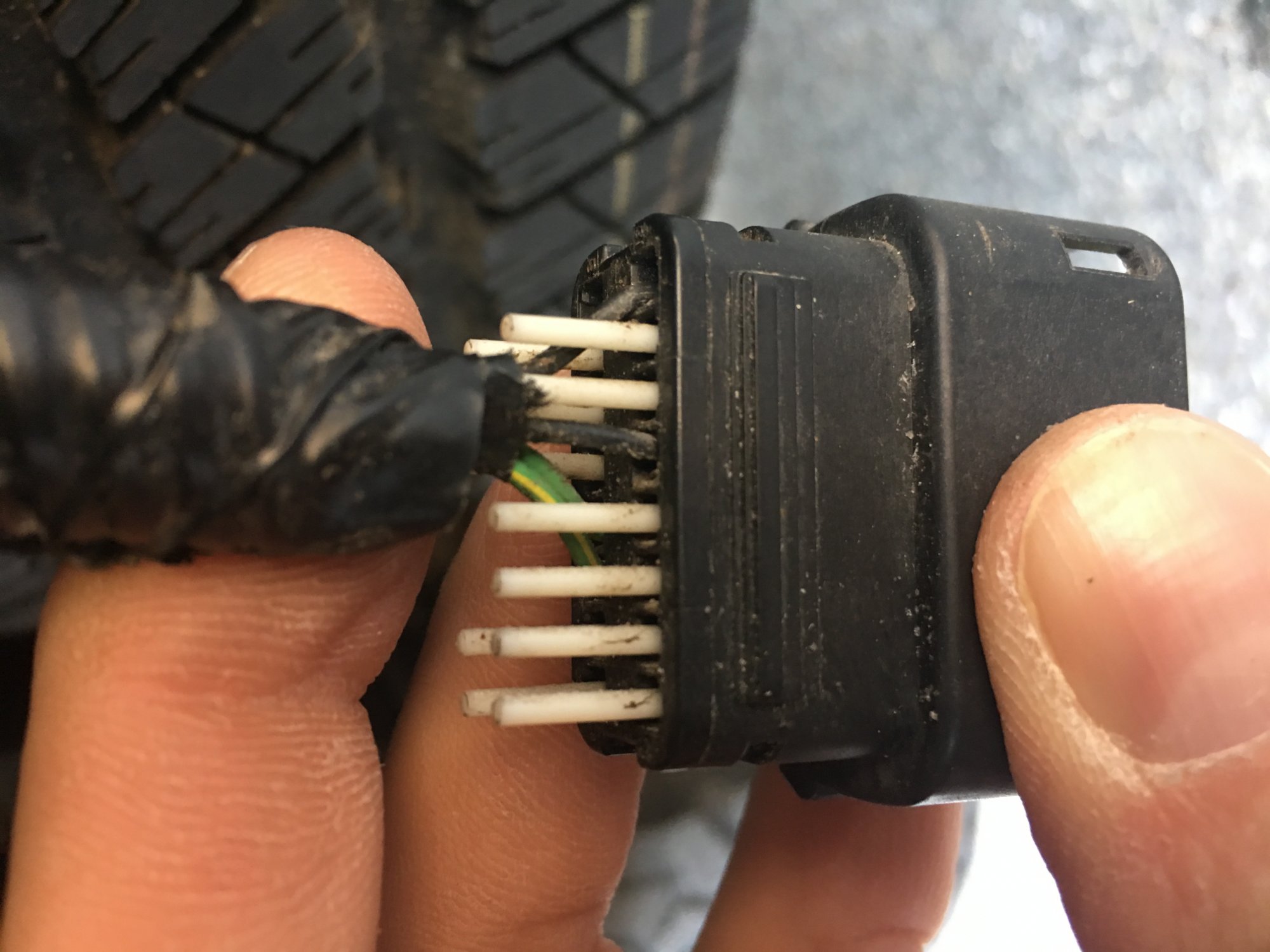

Thanks, page 196 says the plug should have green/yellow strip (x2) and a black which mine does have, but i dont know if they are in the correct locations on the plug, thats why i need the pinouts. Going to be tough to crawl up under there with a multi meter and see which plugs are live.

Link to comment
Share on other sites
