I have installed the 360 camera system that MVI offers. The system is amazing!! The system is relatively easy to install. I used cameras off of amazon for the side cameras. They provided me a cleaner looking end product.




https://www.amazon.com/gp/product/B00P914W7C/ref=oh_aui_detailpage_o07_s00?ie=UTF8&psc=1 x2





This is the final outcome. All mirror functions were retained.












The view from this placement is also comparable to the views of other cameras mounted on the outsides of the mirror housing.






Disassembly of the door was an easy to do task. MVI provides a good instructional video on it. If you want stills, message me and I'll send them to you.

One thing I did do to help reduce the risk of scratching the door's upper trim while removing the lower trim is I added tape. This is right above where the two pieces meet, as it required some jimmying.






Taking the mirror housing off of the door is required. Be sure to support the mirror while removing the 3 nuts. There is also a two pronged plastic clip that keeps the mirror on.




Three nuts.


Clip

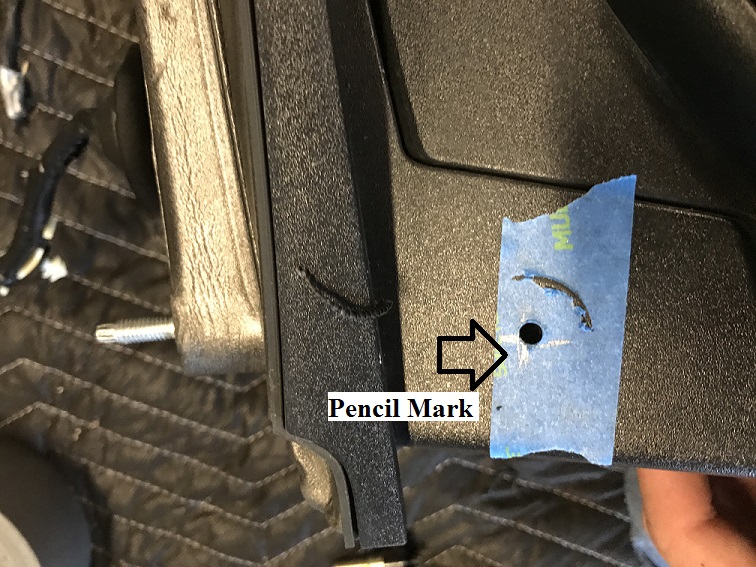

Once I had the mirror housing off and on a surface it can be worked on, I put a piece of tape to mark where I wanted to drill. 1" up and 1" over.

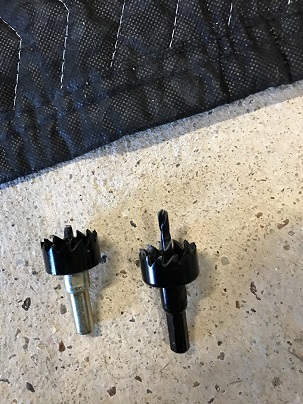

I then used 2 hole saws that were the same size to drill into the housing. The first one was standard and was used to mark the hole. The second saw was modified to prevent me from drilling into the motor of the folding mechanism.









At this point I ran a zip tie through the hole and housing. Taped my camera wire to the zip tie. Then fed it through the channel under the folding mechanism motor.






I also went ahead and cut the wire on the camera that gave it parking lines (green wire). Then I wrapped that section with duck tape, as it is a weak point. And as you pull it through the door and everything, it may pull apart. Then you have tiny tiny wires to put back together.






Push the camera in the hole. Extremely tight fit.






At this point I put the mirror back on the truck, and ran the wire through all the grommets and everything inside the door to get it to the boot that connects the door electronics to the cab.






I made the connections here in the boot. That way if the door ever needs to be removed, I'll be able to disconnect the camera at the same time without any fuss. (I know what you're thinking, "why would you ever have to remove the door?" Well, you just never know.)






I then ran the video line and power wires through the dash and into the center console. I used a power block (from autozone, $14.99) and piggy backed my power off of a cigarette lighter. This way I could have all the cameras tie in at one place.






Then I put everything back together, and viola!!



On a side note, I also hid my HDMI and USB ports in my upper glove box.






Then ended the day by playing a little Super Mario Brothers on an 8" screen. lol






This is my first write up, so please be gentle with the criticism. Lol. If you need more info about a step or something, let me know through pm.



Great write up and I like the camera positioning in the mirrors. What were you using to play SMB? The new NES Classic or something else. I'm curious why it didn't fill the screen. I've tested a Chromecast and Firestick on mine and they fill the screen.

  • Like 2
Link to comment
Share on other sites

Thanks Tenscourt.



I wish I was playing SMB on the NES classic, but they're impossible to find at a good price. I ended up building one.






The bars are around it because I haven't changed the settings in the game system to fill the screen. One of those things that just isn't that important to me. Lol




  • Like 1
Link to comment
Share on other sites

Thanks Tenscourt.



I wish I was playing SMB on the NES classic, but they're impossible to find at a good price. I ended up building one.






The bars are around it because I haven't changed the settings in the game system to fill the screen. One of those things that just isn't that important to me. Lol



Did the cameras include a hole saw or did you purchase those separately? How much room is behind the camera. I ordered the same ones. I just want to make sure I don't hit anything when I drill the holes. Also noticed you said you cut the green wire to remove the parking lines. I assume you didn't have to cut the mirror wire? Thanks

  • Like 1
Link to comment
Share on other sites

Yes. The cameras came with hole saws. 22.5mm. Each camera has one, and you need both. I went over 1" from the side that connects the mirror to the door, and up 1" from the bottom. The first saw is used to start the hole and scuff where the 22.5 hole will be. The second saw needs to be modified. Cut the drill part to be just longer than the hole. If you don't you will drill into the motor housing. I think clearance was about half an inch. Not a lot.













Link to comment
Share on other sites

Yes. The cameras came with hole saws. 22.5mm. Each camera has one, and you need both. I went over 1" from the side that connects the mirror to the door, and up 1" from the bottom. The first saw is used to start the hole and scuff where the 22.5 hole will be. The second saw needs to be modified. Cut the drill part to be just longer than the hole. If you don't you will drill into the motor housing. I think clearance was about half an inch. Not a lot.







Really appreciate the info!



Sent from my Pixel XL using Tapatalk. My build thread: http://www.gm-trucks.com/forums/topic/192614-tenscourts-2016-ltzz71-ccsb-4wd-silverado/

Link to comment
Share on other sites

  • 3 weeks later...

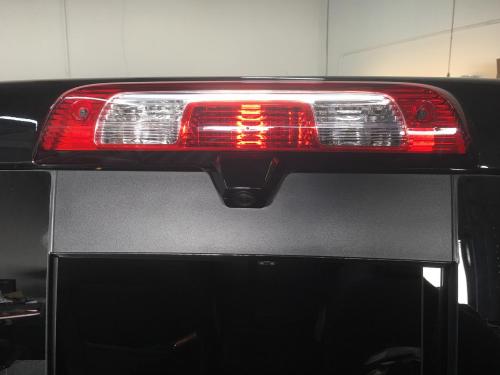

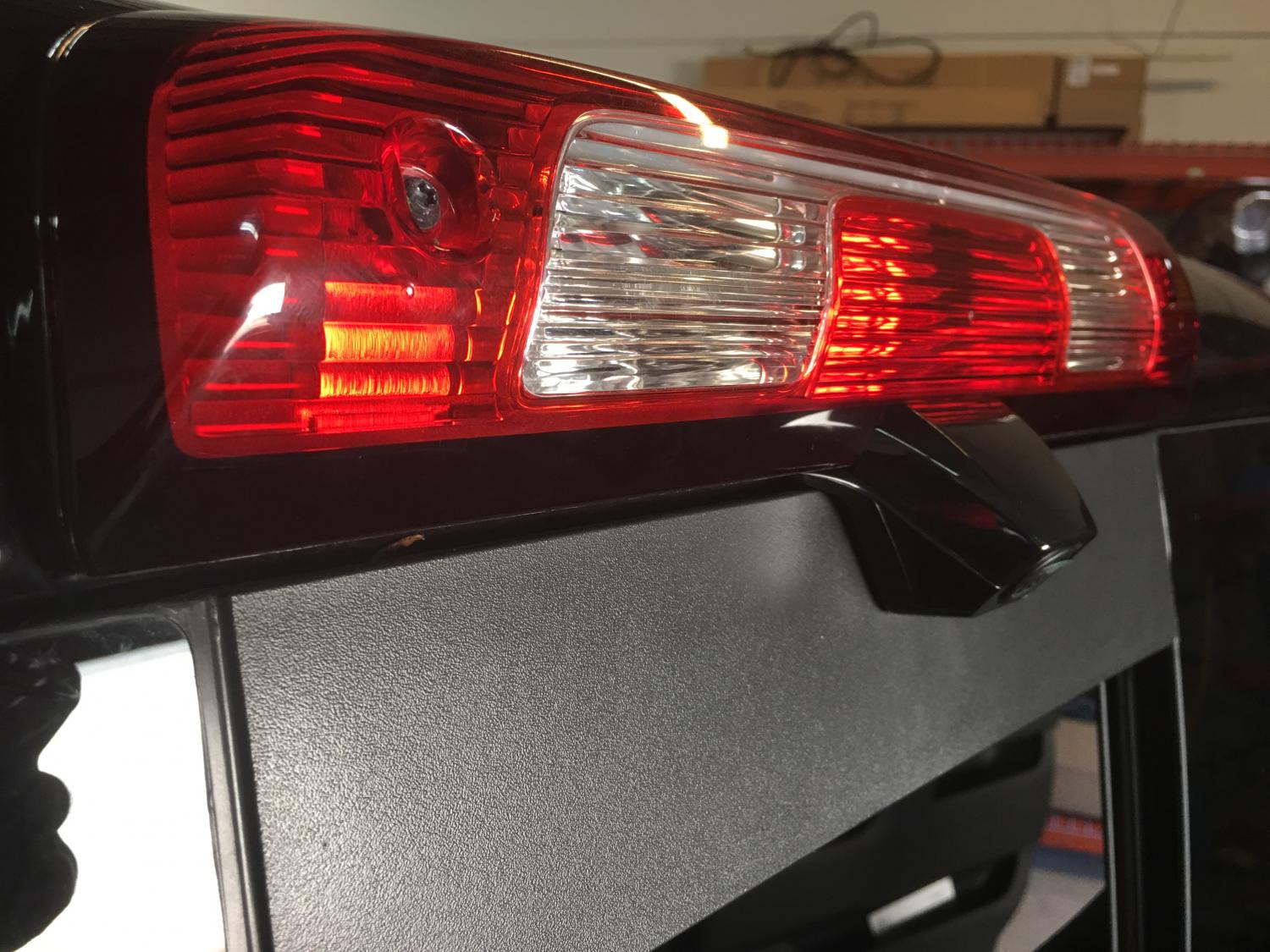

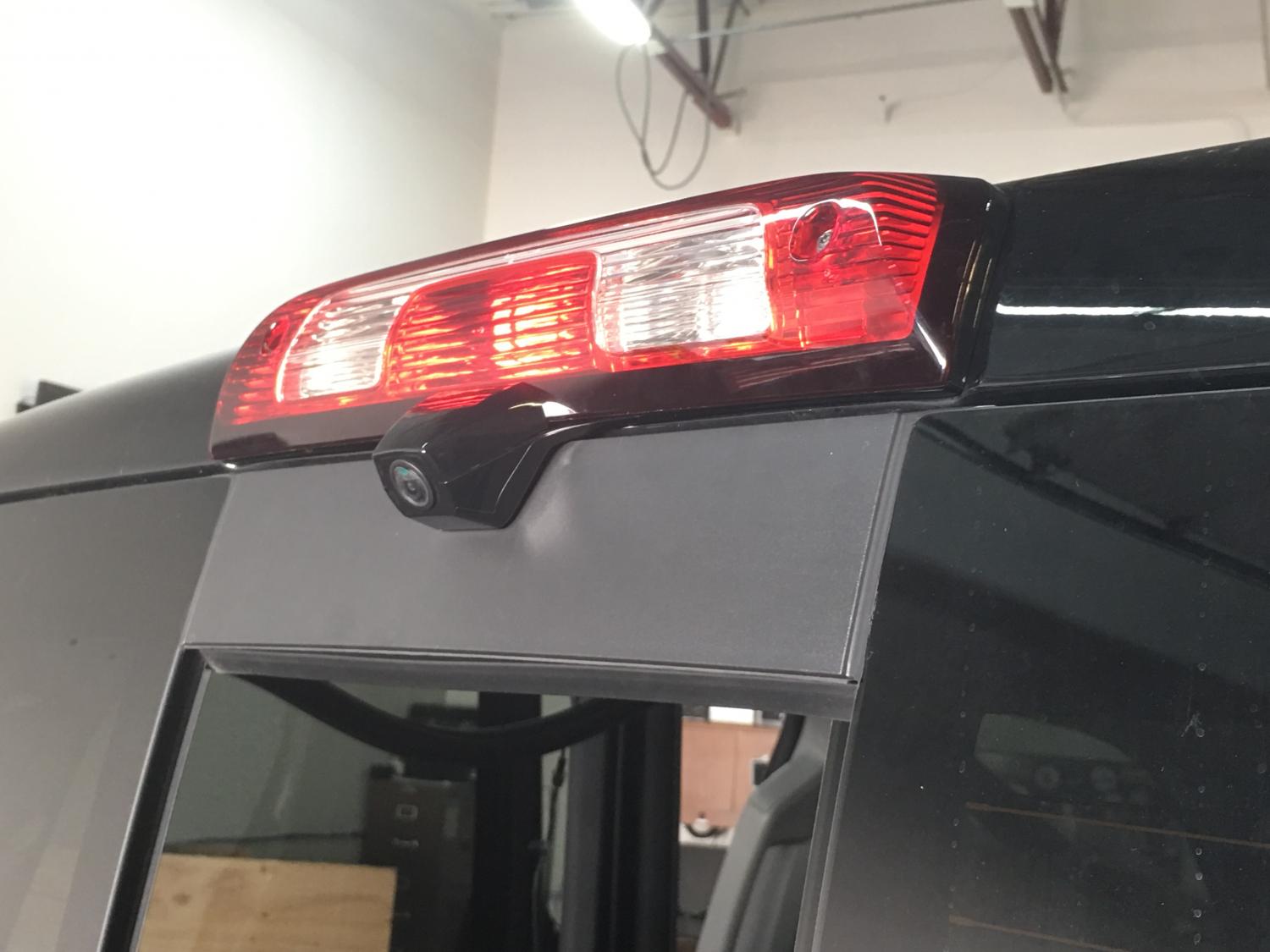

Hey guys....thought you might like to see the New 3rd Brake Light Cargo Cams

Looks great !

Will work on our 360 Surround Camera System, our AV Module and we can adapt to the GM Intellihaul System













  • Like 1
Link to comment
Share on other sites

  • 2 weeks later...

i would like this installed, how do I go about this?

Well Mr reyes, it depends on where you're located. Talk to Anthony about ordering the system and then find an installer in your area. Depending on what all you want determines time and cost. If you're in the Houston area, pm me, as I can install it all for you.
Link to comment
Share on other sites

Well Mr reyes, it depends on where you're located. Talk to Anthony about ordering the system and then find an installer in your area. Depending on what all you want determines time and cost. If you're in the Houston area, pm me, as I can install it all for you.

Hey bud, I'm in Santa Barbara, CA. Do you know of any installer near me. I guess I can look up MVI installation.

  • Like 1
Link to comment
Share on other sites

Will this function on the 2017 LT without having the HMI unlocked?

Most of this will work without the HMI unlocked. Text Anthony with exactly what parts you're looking for and he'll get you setup.



Sent from my Pixel XL using Tapatalk. My build thread: http://www.gm-trucks.com/forums/topic/192614-tenscourts-2016-ltzz71-ccsb-4wd-silverado/
