Here is a bracket I made out of 1/8th plate. I used u bolts to mount it so that I would have to drill into that cross member. I designed it in a way that you can leave everything loose and adjust it to fit perfectly where you need it to go. I could CAD up a template if anyone is interested.

I made this using a hack sa and a hand drill. If you had some better power tools you could definitely clean it up.

Sent from my iPhone using Tapatalk

looks good to me. I like that idea!!!

Willie will · October 22, 2015

this is what I plan on getting

https://otrattw.net/CONTURA-V-LED-BUMPER-LIGHT-BAR-LOWER-LED-INDEPENDENT-V1D1JBWB-PZCDR-5LB.html

im going to get three cause I know im going to get more leds

https://otrattw.net/Three-Position-V-Series-Switch-holder.html

and for now to cover up the empty slots

https://otrattw.net/V-Series-Panel-Plug.html

yeah im just going to put them just to the left of the steering column. it should be to hard.ill post some pics up when I get everything.

Olgrey93 · October 23, 2015

Has anybody used the nfab bar mount for the front bumper?

http://www.n-fab.com/products/sfID1/75/sfID2/63/sfID3/68/productID/590

Sent from my XT1254 using Tapatalk

Edited October 23, 2015 by Olgrey93

Willie will · October 23, 2015

Has anybody used the nfab bar mount for the front bumper?http://www.n-fab.com/products/sfID1/75/sfID2/63/sfID3/68/productID/590

Sent from my XT1254 using Tapatalk

I haven't seen anybody using but it looks cool. It looks like a simple installs as well. Which lights would you get?

Olgrey93 · October 23, 2015

It says it mounts 4 9 inch bars. I'd like to know the actual measurements on the mounting locations. It would be nice to fit a 40 on there

Sent from my XT1254 using Tapatalk

agentf · October 23, 2015

It says it mounts 4 9 inch bars. I'd like to know the actual measurements on the mounting locations. It would be nice to fit a 40 on there

Sent from my XT1254 using Tapatalk

This guy used a cradle mount. Looks like something I could easily fab up!

http://www.gm-trucks.com/forums/topic/165369-light-bar-mount/?p=1512918

Olgrey93 · October 23, 2015

Where does the light bar mount to? Both the bar itself and also the led bar. This is the exact setup I want to run

Sent from my XT1254 using Tapatalk

agentf · October 23, 2015

Where does the light bar mount to? Both the bar itself and also the led bar. This is the exact setup I want to run

Sent from my XT1254 using Tapatalk

Not 100% sure what you are asking but the light bar is mounted into the cradle like the one below:

That Cradle is mounted to the N-Fab Mount that was mentioned a few posts up. It looks as if its mounted to the 2 outer mounts. The N-Fab mount looks to be bolted to where the tow hooks are. I'm guessing its sandwiched in there or just on the side.

Olgrey93 · October 23, 2015

Oh ok I got it now. I'm pretty new to this stuff. Crystal clear now. Thanks for the help.

Sent from my XT1254 using Tapatalk

boone9 · October 26, 2015

Where are you guys running the wires back through the firewall? Is there a certain spot to run your switch through into the cab? thanks for the help

Mike1220 · October 30, 2015

Where are you guys running the wires back through the firewall? Is there a certain spot to run your switch through into the cab? thanks for the help

you can go through a few different places. The ones I use are the boots used for the door harnesses (the big black boot that you find on the forward end of the door jam) ; also the rubber gasket under the driver side footwell carpet, you can make a slice into the rubber with a boxcutter or other knife and slide the wire through, it'll seal itself; I have also drilled a hole into a plastic cap under the passenger side footwell carpet to run wires into the cab there. All are great locations. Personally I use the 2 spots under the carpet more because you'll never see the wires unless you get under the truck.

Olgrey93 · November 3, 2015

Does anybody have a drawing or detailed picture of their mount behind the grille. I'm going to be doing this very soon

Sent from my XT1254 using Tapatalk

Willie will · November 4, 2015

Well I finally got all the parts to wire my new switch from Ottawa. I got all wired up!

Realized I got the wrong switch on which one is supped to be on when the bar is off and when the bar is on. I was supposed to get the upper half as the independent

Light bar off

Light bar on

I had to make a jumper wire to power up the bottom half. Hopefully I can get it mounted up this week. I'm still trying to figure out how I want to mount it since I don't want to drill into my radiator support. I saw a guy on this fourm that used c clamps and I think I'm going that route

Willie will · November 6, 2015

Well I was going try to put my switch to the left of the steering wheel when I came to a problem.

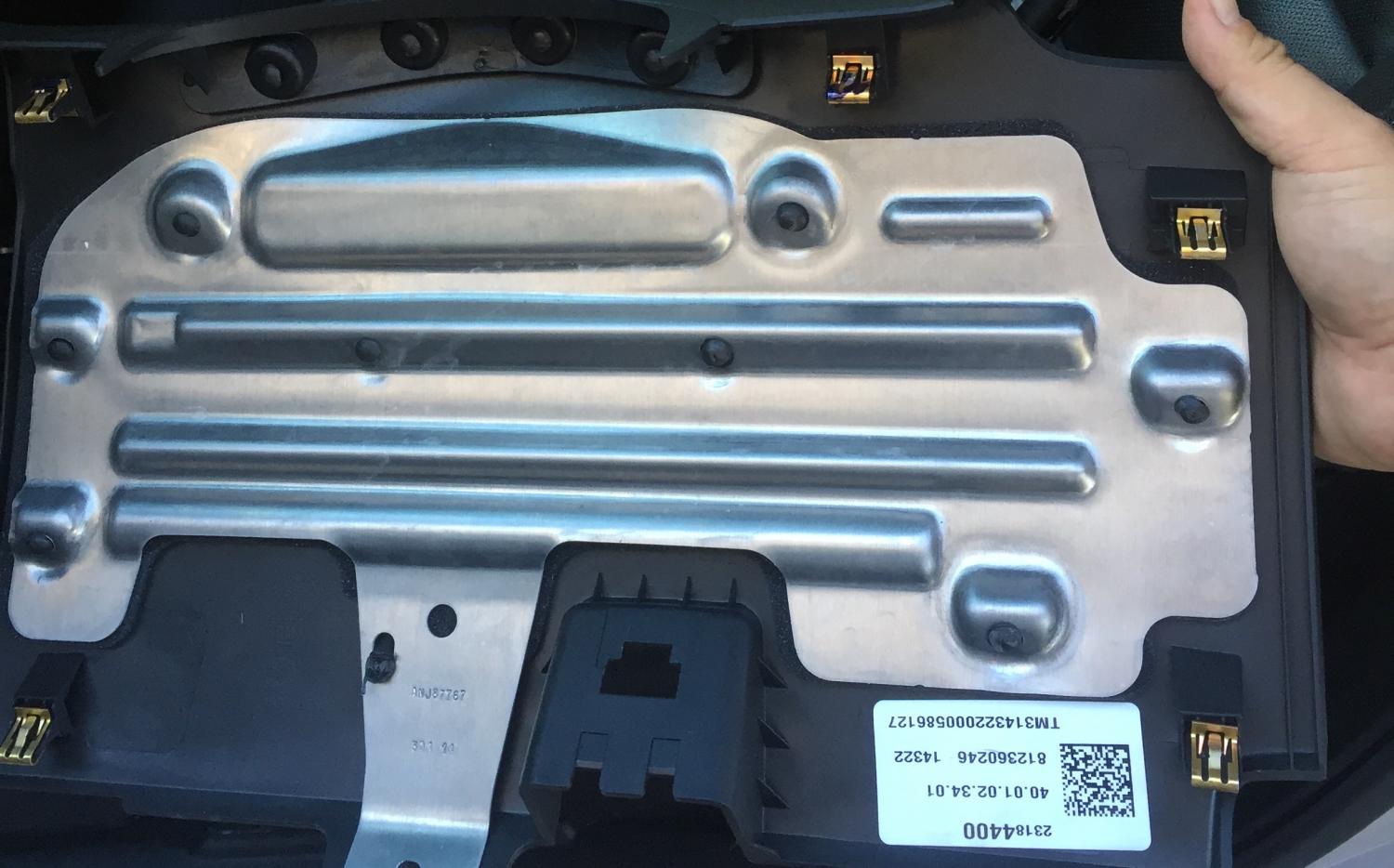

There a metal frame where I want to mount it. Then I seen another problem!!

So if I wanted to drill in the panel the only spot where I won't have interference is right below the steering column. I don't know if I want it there but I am running out of options. What do you guys think? Right below the steering column or some where else?

Toddfather · November 7, 2015

I scanned just about every thread and forum and anything else I could find when doing research for my install, but I can't say I've ever seen someone install 2x dual row light bars behind the grill. Not saying it can't be done, but I personally haven't seen it. I did see on another forum of a NNBS silverado with 2x single row light bars behind the grill. Might be able to find a pic if your interested, but that probably doesn't help.

Well 2 didn't fit without removing material. So just went with the 1.

Anyone want to buy a LED BAR [emoji16]
