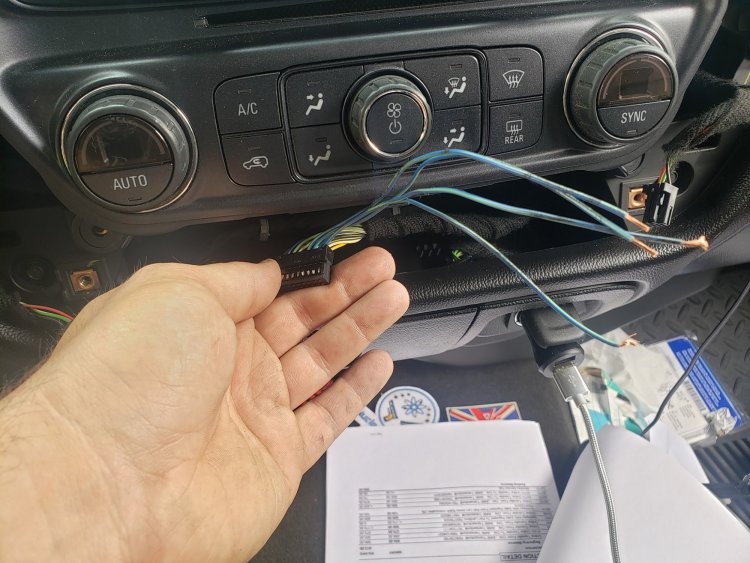

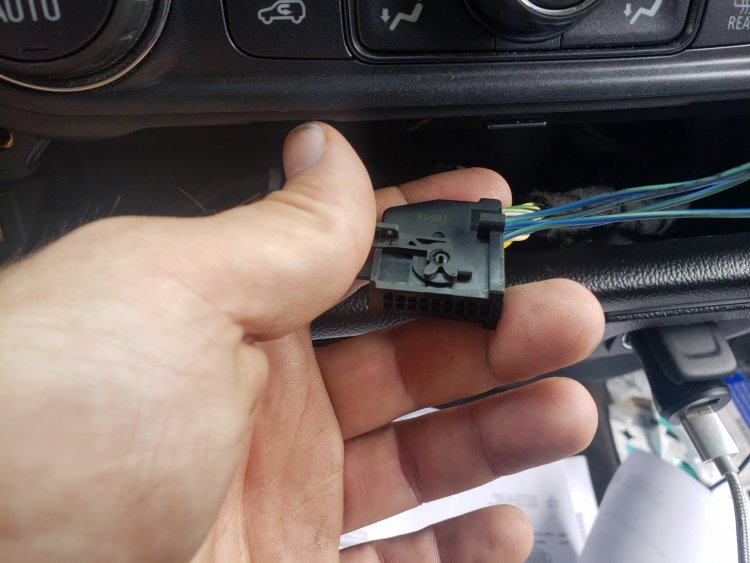

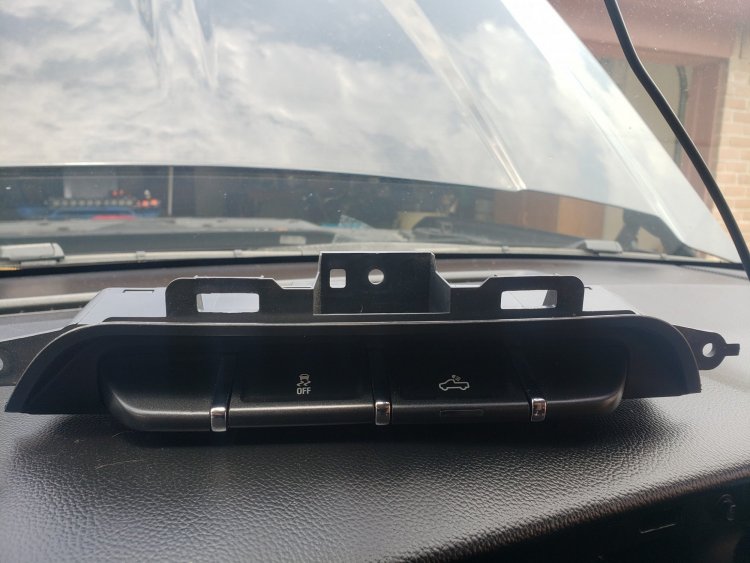

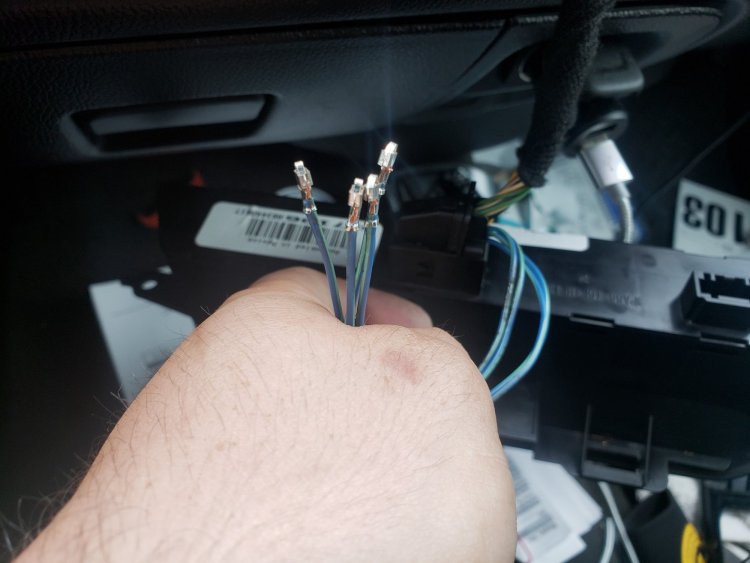

here are some picture and videos of how i installed my upfitter aux switches to my 2017 silverado Texas edition truck which DID NOT com with them nor does it have the relays fuses or switch wires in the harness. keep in mind the switches are GROUND or NEGATIVE switching. which means they DO NOT HAVE 12v ON THEM. DO NOT PUT 12V ON THE WIRES YOUR ABOUT TO INSTALL. i had to get a new connector from a crashed truck in a junk yard which i then pulled 4 of the pins and wires out of to install into my trucks harness plug for the upfitter switch. once i did that it was just a simple act of making a short extension wire from those 4 wires coming from the harness plug to go to the driver kick panel where im going to locate the relays for the devises i want to control. you will see the harness plug and wires where i put them. and you will see the JST plug i used to connect the 4 wires to the extension wire to run to my relays. will also upload videos soon.
-
I've read threads on here, read other threads (from other sites), spoke with people etc. MY MAIN GOAL OF THIS POST IS TO SEE IF ANYONE HAS ANY COMMENTS OR SUGGESTIONS ON MY WIRE DIAGRAM BEFORE I PULL MY TRUCK APART. THANK YOU My goal is to add the following: 1. High Output Alternator (320A Iraggi) 2. Add Second Battery (Optima Yellow Group Size D34-78) 3. Upgrade All Charging wires to 1/0 Gauge (GP car Audio Power Wire w/Big 3 kit) From what I gather, The route that i'm going to take is as follows: 1. Install the Alternator 2. Run 1/0 Gauge Ground from (-) of Alternator to Frame (Leave factory wire connected) and to (-) of Factory Battery 3. Run 1/0 Gauge Power from (+) of Alternator to (+) of Factory Battery (fused @ 320A) 4. Run 1/0 Gauge Power from (-) of Factory Battery to (-) of Second Battery and to Body Ground 5. Run 1/0 Gauge Power from (+) of Factory Battery (fused @ 320A) to (+) of Second Battery (fused @ 320A) 6. From there all Power needed for AUX Equipment (Amps, Rock Lights, Inverters, etc) will Run from the (+) of the Second Battery (Fused appropriately) I did a lot of research into this and the only things that had any second thoughts on were if I should run a relay or not and if i should run the 1/0 gauge wire through the current sensor. (not sure if it would even fit). I decided not to do either. The first of which I chose not to do, mainly for the fact that the relay has a voltage drop of its own (minor), but also, it's removal has been the fix for many people in car audio to reduce lights from flickering. The amount of battery capacity that I have won't have issues with me needing to isolate my batteries. The second of which I chose not to do, was only because I read a lot of posts (mainly in car audio forums) that didn't do this and had no issues. I feel that the current wire that is running through the sensor must suffice. I'm still a bit on the fence on this one. But, I could only find maybe 1 or 2 instances where people did this modification and it was for much smaller rated systems. Neither seemed to have any problems. I just tend to follow the majority of examples that don't have issues. I'm attaching my general wire layout. If anyone sees something or could have a rational discussion, please do. I'm all ears.
-
2009 Chevrolet Silverado 2500 duramax The two power outlets on the dash and the one under the console have no power I have checked the fuses and wires and they are good I don’t know what it could be any help would be great thanks
-

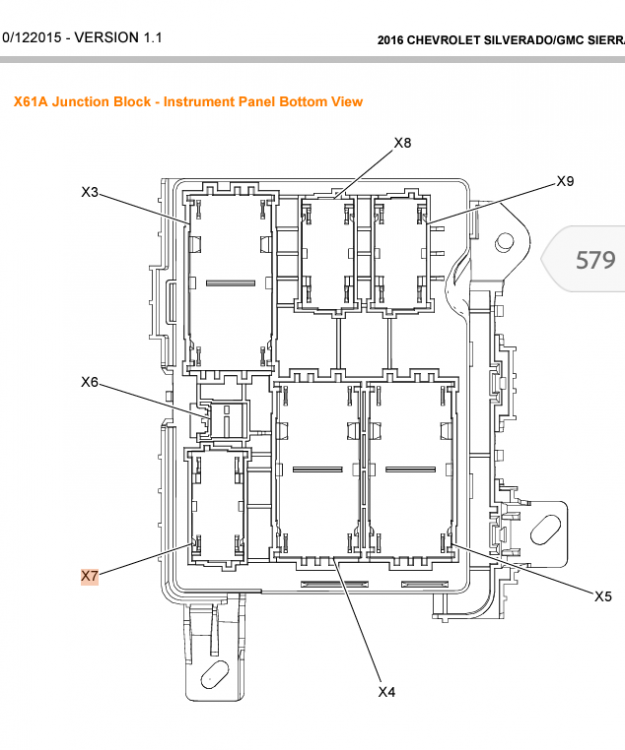

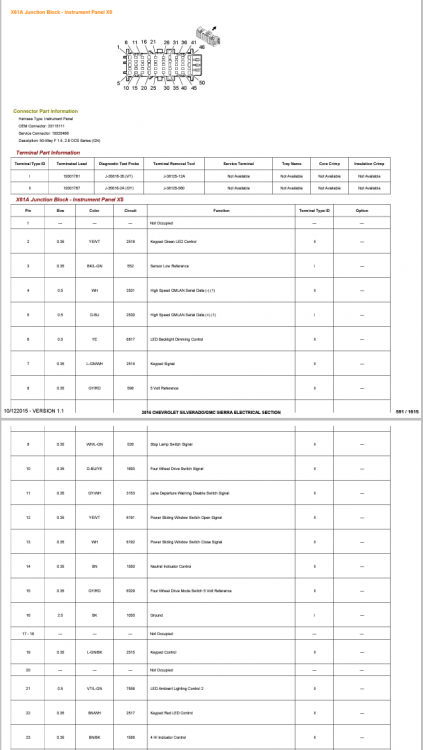

Can anyone help? I have a 2016 diesel 2500HD and want to use the Upfitter X61A junction block - X7 plug/cable to run a lightbar. I need to add my own switch to ground, to control the X7 power relays for switch 3. I have added for switch 3 the relay, 30amp and 5amp fuses in the X50A Fuse Block, installed the upfittter X7 plug and cable in the X61A Junction block. The wiring schematic for the upfitter relays Page 396, has the trigger as X5-pin 11, however when I check the pins of the X61A Junction block -X5 pin schematic on page 593 pin 11 is assigned to "Lane Departure signal". I need help finding the 85/86 relay wire to attach a ground switch. Just a note: I plan on using pin 18 of the K9 Body control X5 plug as the ground. This should control the lightbar to only have power when the High Beam are on.
-
My 2016 Suburban’s auxiliary ports and features (USBs, wireless charging pad, 12V) blink off briefly when the doors are shut while cranked. This can cause my aftermarket headrest monitors to power off and back on if I get out of a cranked car to pump gas, hand a kid something in the back seat, run into gas station or restaurant, etc. This is extremely frustrating on road trips, making a pit stop and having to turn the TVs back on, DVD player back on, etc. Sometimes if the key fob is left in the car it won’t blink off, but not always. Every time this happens I hear a click, like a light blinking, behind the dash as the door is closed. What is happening back there, triggered by the door closing, that’s causing a sudden loss of power to so many auxiliary items? Attached video shows what happens to a cranked car when the door is closed with fob outside the car. I have a Blu-ray player, wired into a wire in the dash labeled for the BCM, but several other items have the same reaction to shutting the door while cranked with fob outside. Much thanks. IMG_2291.MOV -
I have a 2005 Silverado with the Bose system in it with no XM radio. I am trying to wire in an AUX cable to the radio without having to use a FM bypass module. Is there anywhere I could splice into to wire the input in? Every video I have watched on it so far shows splicing into the XM transmitter. I am trying to make it look as factory as possible on the console so I do not want to just replace the head unit. Any advice would be much appreciated. Thank y'all. -
2007 Yukon XL AUX Button randomly turns itself on and off with no human interaction. Severe Battery drain is occurring when the "AUX" button is "on". Alternator/Serpentine/AC Belts have been replaced and the symptom seemed to subside for a week or so, but has now returned with a vengeance. Day driving isn't so threatened, but night driving has become unsafe, headlights are constantly is some mild flux of dim strobing. Any clue to why the electrical in this Yukon has begun to behave like Christine? -
I could use some helpful info on adding a aux into my 2003 1500 Silverado LS thank you, Ethan
